KNB-L Series Nano Scale Bead Mill
daim ntawv sau npe
Lub zog tshiab_Lithium-ion roj teeb, lsilicon carbon, graphene, carbon nanotubes, alumina membrane slurry, PVDF membrane slurry, thiab lwm yam.
Powder_Alumina, Zirconia, Silicon Carbide, Titanium Dioxide, Calcium Carbonate, Silicon Materials, Cerium oxide, Zinc oxide, Barium Titanate, MLCC, Boron Nitride, Boron carbide, cov khoom sib nqus, thiab lwm yam.
Txheej txheem cej luam

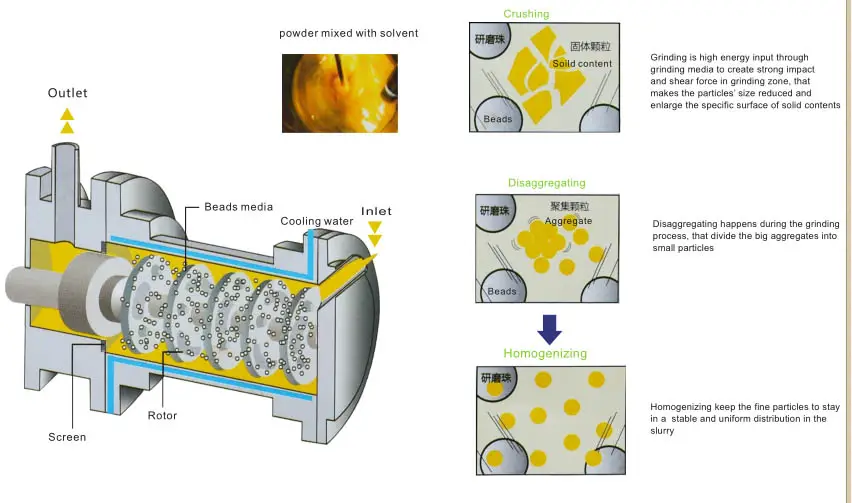

Bead mill yog dab tsi?
ntub sib tsoo hlaws zeb yog ib hom tshuab rau ultra-fine ua cov khib nyiab hauv cov kua. Lub zog siab tawm tswv yim los ntawm kev sib tsoo xov xwm los tsim kom muaj zog shear thiab cuam tshuam quab yuam kom dispersing, disaggregating thiab homogenizing hais nyob rau hauv slurry.
Cov txiaj ntsig yog dab tsi?
Yuav ua li cas xaiv ib tug agitator hlaws zeb, KEY cov ntsiab lus?
A. Tus nqi ntws ntawm cov hlaws zeb txiav txim siab ntev npaum li cas cov khoom nyob hauv qhov sib tsoo, uas cuam tshuam rau qhov zoo ntawm cov khoom, cov zis thiab qhov loj me me.
B. Linear tshaj tawm ntawm rotor txiav txim siab qhov kev siv ntawm lub zog kinetic uas hloov mus rau cov xov xwm sib tsoo uas cuam tshuam rau kev sib tsoo efficiency, fineness ntawm cov khoom thiab hnav poob ntawm kev sib tsoo xov xwm. 12-16 m / s yog qhov kev khiav hauj lwm ceev.
C. Sib tsoo xov xwm loj xaiv yog lub ntsiab lus tseem ceeb, feem ntau nws yog 1000 npaug ntawm lub hom phiaj particle loj. Nyob rau hauv txoj kev xav, me me ntawm txoj kab uas hla ntawm cov hlaws dai, ntau qhov kev sib cuag taw tes tshwm sim nrog me me particle ua tiav. Txawm li cas los xij, Nws tseem nyob ntawm ntau yam xws li qhov loj me me. Peb yuav tsum xaiv cov hlaws kom raug kom haum cov kev sib tsoo sib txawv.
D. Feem ntau, kev sib tsoo xov xwm sau tus nqi siab dua, kev sib tsoo zoo dua. Thiab qhov ntau ntawm kev sau tus nqi yog nyob ib ncig ntawm 75% -90% raws li viscosity ntawm cov khoom. Yog tias siab dhau heev lawm yuav ua rau sieve thaiv thiab kub kub teeb meem.
E. Qhov ntom ntom ntawm kev sib tsoo tawm-siab dua qhov ntom ntom yuav tsim kom muaj zog shear thiab cuam tshuam quab yuam hauv kev txav, kev sib tsoo zoo dua nws yog.
F. Gap ntawm kev sib cais screen feem ntau yog 1/2-1/4 zaug ntawm kev sib tsoo xov xwm txoj kab uas hla. Yog tias qhov loj me me loj dua, nws tuaj yeem thaiv lub sieve, yog li, peb yuav tsum xav txog ob theem kev sib tsoo.

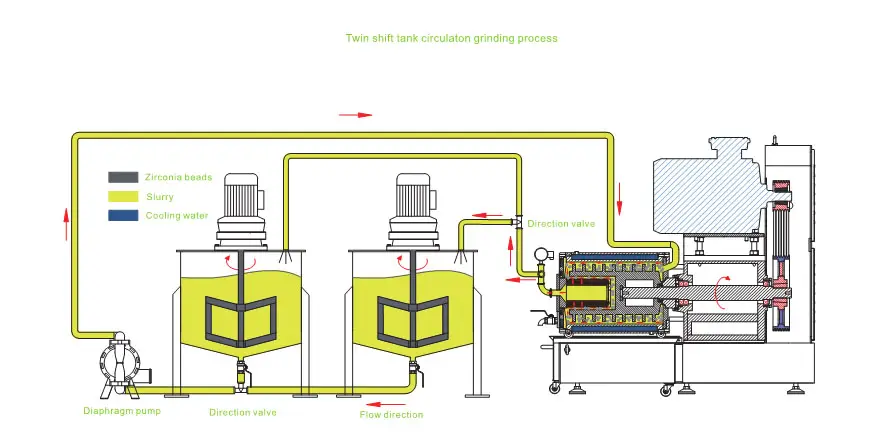

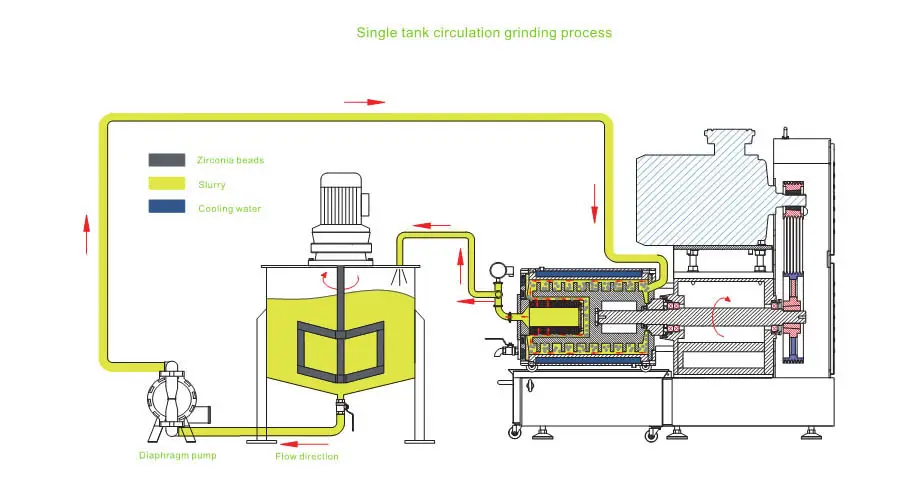

Cov Txheej Txheem Ua Haujlwm
Kev sib piv ntawm cov hlaws zeb thiab pob zeb
Feature/Advantage
● Tag nrho cov txheej txheem tswj hwm los ntawm PLC thiab cov khoos phis tawj muaj peev xwm, kom paub txog cov txheej txheem ntse tswj los ntawm cov khoom siv raw, kev sib xyaw ua ntej, kev sib tsoo ultra nplua, pom, hlau-tshem tawm, tshuaj tsuag kom qhuav thiab ntim ntim.
● Interface kov npo zaub thiab saib xyuas cov xwm txheej khiav ntawm tag nrho lub cev.
● Kev teeb tsa sib txawv ntawm kev sib tsoo daim ntawv qhia kom paub txog kev hloov kev sib tsoo yooj yim.
● Tsis siv neeg khaws thiab tshuaj xyuas cov ntaub ntawv khiav
● High precision sensors thiab gauges ua kom muaj kev ruaj ntseg thiab kev nyab xeeb
● Txhawm rau txuag cov nqi zog, txhim kho kev ua haujlwm thiab tsim cov txiaj ntsig ntau ntxiv rau peb cov neeg siv khoom
Daim ntawv thov dav dav
Lub zog tshiab_Lithium-ion roj teeb, lsilicon carbon, graphene, carbon nanotubes, alumina membrane slurry, PVDF membrane slurry, thiab lwm yam.
Powder_Alumina, Zirconia, Silicon Carbide, Titanium Dioxide, Calcium Carbonate, Silicon Materials, Cerium oxide, Zinc oxide, Barium Titanate, MLCC, Boron Nitride, Boron carbide, cov khoom sib nqus, thiab lwm yam.
Chemical_Automotive txheej, xim rooj tog, xim pleev xim, xim tshwj xeeb, xim pleev xim, xim pleev xim, UV number case, iav number case, offset number case, tshuaj pleev ib ce, pharma, khoom noj khoom haus, kev ua liaj ua teb thiab lwm yam los muab cov kev daws teeb meem tiav.
Tsis siv neeg ntau lawm kab platform
nta
● Adapted rau 0.03 hli sib tsoo xov xwm nyob rau hauv dynamic centrifugal sib cais system, tso cai rau ultra nplua sib tsoo yuav tsum hauv qab no 100nm
● Tag nrho cov qauv tshiab tsim ntawm centrifugal sib cais qhov system kom tiv thaiv cov hlaws dai
● Lub kaw lus sib cais tsis muaj qhov screen yuav tsis thaiv qhov hluav taws xob
● Nrog pas nrig sib tsoo system, uas lav kev ua haujlwm siab thiab nqaim particle loj tis
● Advanced mechanical seal thev naus laus zis los tiv thaiv qhov poob ntawm cov dej xau
● Kev kub siab thiab kub tsis siv neeg tiv thaiv kev nyab xeeb
● Xaiv cov khoom siv tiv tauj kom tau raws li cov kev xav tau sib txawv
● Kov npo lossis PLC tswj vaj huam sib luag, yooj yim rau kev khiav lag luam
Cov Ntaub Ntawv Ntawv
| qauv | Active Volume | hwj chim (KW) |
Batch Loj (L) |
Batch Loj (L) |
Media loj (Hli) |
Nyhav (hnyav) |
Qhov ntev (Hli) |
| KNB-L-1L | 1L | 5.5 | / | 3-30 | 0.03-1.0 | 200 | * * 530 470 625 |
| KNB-L-2L | 2L | 7.5 | 4 | 5-50 | 0.03-1.0 | 500 | * * 980 750 1550 |
| KNB-L-6L | 6L | 18.5 | 7.5 | 15-100 | 0.03-1.0 | 1200 | * * 2000 1250 1450 |
| KNB-L-10L | 10L | 22 | 11 | 30-200 | 0.03-1.0 | 1400 | * * 2200 1250 1500 |
| KNB-L-30L | 30L | 45 | 18.5 | 60-500 | 0.03-1.0 | 2100 | * * 2350 1550 1850 |
| KNB-L-60L | 60L | 75 | 22 | 150-1000 | 0.03-1.0 | 3600 | * * 2600 1750 1900 |
| KNB-L-150L | 150L | 185 | 30 | 300-3000 | 0.03-1.0 | 7500 | * * 3200 1900 2100 |
Kev cov ntaub ntawv
● Thawj particle loj: ＜50um
● Tom qab av: 0.05-1um
● Solvent: Dej-puag, roj-puag
● Viscosity: ＜20000CPS
● Sib tsoo xov xwm loj: 0.03-1.0mm
● Cov khoom siv Rotor: Ceramics, Hard alloy, Tungsten carbide, PU
● Cov khoom siv sab hauv lub tog raj kheej: Ceramics, Hard alloy, Tungsten carbide, PU
Cov Khoom Siv Sib Txawv
| qauv | Active Volume | hwj chim (KW) |
Batch Loj (L) |
Batch Loj (L) |
Media loj (Hli) |
Nyhav (hnyav) |
Qhov ntev (Hli) |
| KNB-L-1L | 1L | 5.5 | / | 3-30 | 0.03-1.0 | 200 | * * 530 470 625 |
| KNB-L-2L | 2L | 7.5 | 4 | 5-50 | 0.03-1.0 | 500 | * * 980 750 1550 |
| KNB-L-6L | 6L | 18.5 | 7.5 | 15-100 | 0.03-1.0 | 1200 | * * 2000 1250 1450 |
| KNB-L-10L | 10L | 22 | 11 | 30-200 | 0.03-1.0 | 1400 | * * 2200 1250 1500 |
| KNB-L-30L | 30L | 45 | 18.5 | 60-500 | 0.03-1.0 | 2100 | * * 2350 1550 1850 |
| KNB-L-60L | 60L | 75 | 22 | 150-1000 | 0.03-1.0 | 3600 | * * 2600 1750 1900 |
| KNB-L-150L | 150L | 185 | 30 | 300-3000 | 0.03-1.0 | 7500 | * * 3200 1900 2100 |
Kev cov ntaub ntawv
● Thawj particle loj: ＜50um
● Tom qab av: 0.05-1um
● Solvent: Dej-puag, roj-puag
● Viscosity: ＜20000CPS
● Sib tsoo xov xwm loj: 0.03-1.0mm
● Cov khoom siv Rotor: Ceramics, Hard alloy, Tungsten carbide, PU
● Cov khoom siv sab hauv lub tog raj kheej: Ceramics, Hard alloy, Tungsten carbide, PU
