KNB-S Series Sub-micron Bead Mill
daim ntawv sau npe
Silicon carbon anode, cathode cov ntaub ntawv, polishing kua (alumina, zirconia, cerium oxide, thiab lwm yam), graphene, xim paste, luam ntawv number case, hluav taws xob ceramics, thiab lwm yam.
Txheej txheem cej luam
Bead mill yog dab tsi?
ntub sib tsoo hlaws zeb yog ib hom tshuab rau ultra-fine ua cov khib nyiab hauv cov kua. Lub zog siab tawm tswv yim los ntawm kev sib tsoo xov xwm los tsim kom muaj zog shear thiab cuam tshuam quab yuam kom dispersing, disaggregating thiab homogenizing hais nyob rau hauv slurry.
Cov txiaj ntsig yog dab tsi?
Yuav ua li cas xaiv ib tug agitator hlaws zeb, KEY cov ntsiab lus?
A. Tus nqi ntws ntawm cov hlaws zeb txiav txim siab ntev npaum li cas cov khoom nyob hauv qhov sib tsoo, uas cuam tshuam rau qhov zoo ntawm cov khoom, cov zis thiab qhov loj me me.
B. Linear tshaj tawm ntawm rotor txiav txim siab qhov kev siv ntawm lub zog kinetic uas hloov mus rau cov xov xwm sib tsoo uas cuam tshuam rau kev sib tsoo efficiency, fineness ntawm cov khoom thiab hnav poob ntawm kev sib tsoo xov xwm. 12-16 m / s yog qhov kev khiav hauj lwm ceev.
C. Sib tsoo xov xwm loj xaiv yog lub ntsiab lus tseem ceeb, feem ntau nws yog 1000 npaug ntawm lub hom phiaj particle loj. Nyob rau hauv txoj kev xav, me me ntawm txoj kab uas hla ntawm cov hlaws dai, ntau qhov kev sib cuag taw tes tshwm sim nrog me me particle ua tiav. Txawm li cas los xij, Nws tseem nyob ntawm ntau yam xws li qhov loj me me. Peb yuav tsum xaiv cov hlaws kom raug kom haum cov kev sib tsoo sib txawv.
D. Feem ntau, kev sib tsoo xov xwm sau tus nqi siab dua, kev sib tsoo zoo dua. Thiab qhov ntau ntawm kev sau tus nqi yog nyob ib ncig ntawm 75% -90% raws li viscosity ntawm cov khoom. Yog tias siab dhau heev lawm yuav ua rau sieve thaiv thiab kub kub teeb meem.
E. Qhov ntom ntom ntawm kev sib tsoo tawm-siab dua qhov ntom ntom yuav tsim kom muaj zog shear thiab cuam tshuam quab yuam hauv kev txav, kev sib tsoo zoo dua nws yog.
F. Gap ntawm kev sib cais screen feem ntau yog 1/2-1/4 zaug ntawm kev sib tsoo xov xwm txoj kab uas hla. Yog tias qhov loj me me loj dua, nws tuaj yeem thaiv lub sieve, yog li, peb yuav tsum xav txog ob theem kev sib tsoo.

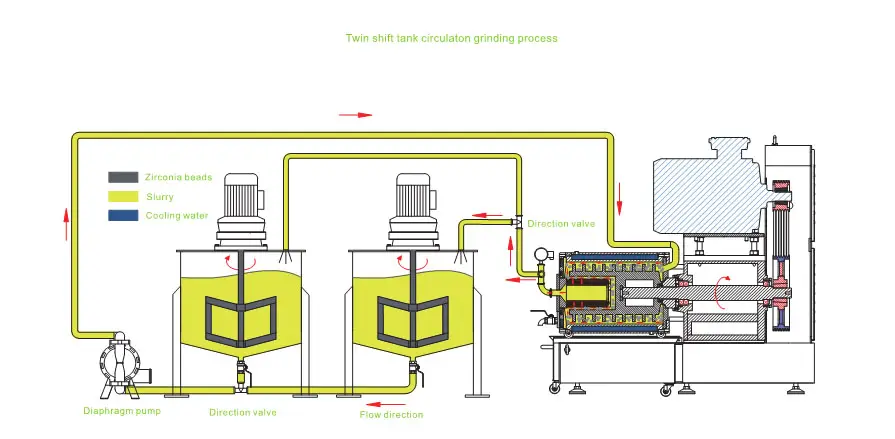

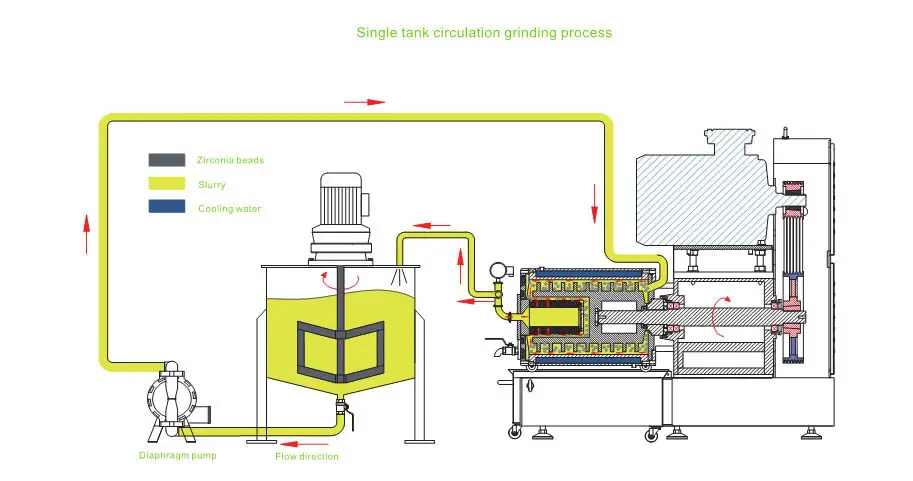

Cov Txheej Txheem Ua Haujlwm
Kev sib piv ntawm cov hlaws zeb thiab pob zeb
Feature/Advantage
● Tag nrho cov txheej txheem tswj hwm los ntawm PLC thiab cov khoos phis tawj muaj peev xwm, kom paub txog cov txheej txheem ntse tswj los ntawm cov khoom siv raw, kev sib xyaw ua ntej, kev sib tsoo ultra nplua, pom, hlau-tshem tawm, tshuaj tsuag kom qhuav thiab ntim ntim.
● Interface kov npo zaub thiab saib xyuas cov xwm txheej khiav ntawm tag nrho lub cev.
● Kev teeb tsa sib txawv ntawm kev sib tsoo daim ntawv qhia kom paub txog kev hloov kev sib tsoo yooj yim.
● Tsis siv neeg khaws thiab tshuaj xyuas cov ntaub ntawv khiav
● High precision sensors thiab gauges ua kom muaj kev ruaj ntseg thiab kev nyab xeeb
● Txhawm rau txuag cov nqi zog, txhim kho kev ua haujlwm thiab tsim cov txiaj ntsig ntau ntxiv rau peb cov neeg siv khoom
Daim ntawv thov dav dav
Lub zog tshiab_Lithium-ion roj teeb, lsilicon carbon, graphene, carbon nanotubes, alumina membrane slurry, PVDF membrane slurry, thiab lwm yam.
Powder_Alumina, Zirconia, Silicon Carbide, Titanium Dioxide, Calcium Carbonate, Silicon Materials, Cerium oxide, Zinc oxide, Barium Titanate, MLCC, Boron Nitride, Boron carbide, cov khoom sib nqus, thiab lwm yam.
Chemical_Automotive txheej, xim rooj tog, xim pleev xim, xim tshwj xeeb, xim pleev xim, xim pleev xim, UV number case, iav number case, offset number case, tshuaj pleev ib ce, pharma, khoom noj khoom haus, kev ua liaj ua teb thiab lwm yam los muab cov kev daws teeb meem tiav.

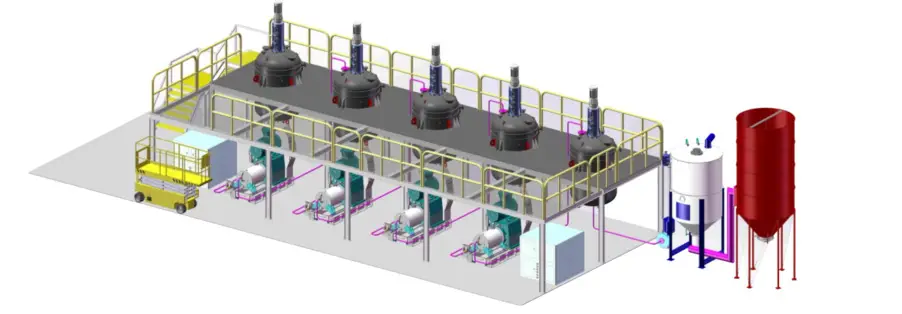

Tsis siv neeg ntau lawm kab platform
nta
● Hloov mus rau 0.1- 0.2mm sib tsoo meida, haum rau kev sib tsoo ultrafine saum 100nm.
● Rotor tsim raws li cov dej mechanics thiab simulation, qhov sib txawv ntawm rotor thiab nkoj yog 7-12mm los lav.
● High efficiency thiab nqaim particle loj tis.
● Nrog qhov loj ntawm qhov screen sib cais los tiv thaiv teeb meem thaiv.
● Txias system tsim raws li cov hauv paus ntsiab lus ntawm helical stereo thermal thiab kua mechanics los lav kev tswj qhov kub thiab txias.
● Advanced mechanical seal thev naus laus zis los tiv thaiv qhov poob ntawm qhov to.
● Kev kub siab thiab kub tsis siv neeg tiv thaiv kev nyab xeeb.

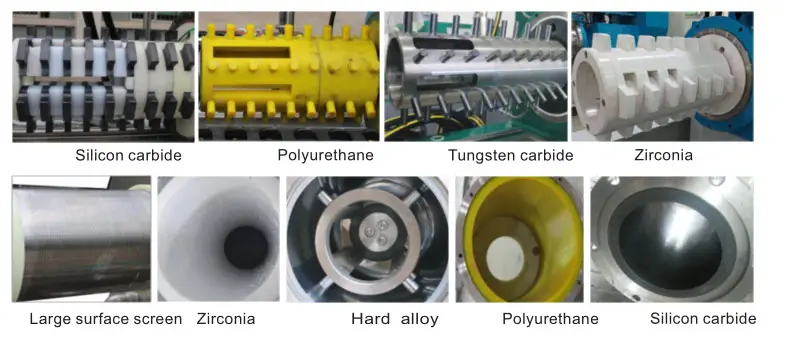

● Xaiv cov khoom siv tiv tauj kom tau raws li cov kev xav tau sib txawv.
● Kov npo lossis PLC tswj vaj huam sib luag, yooj yim rau kev khiav lag luam.

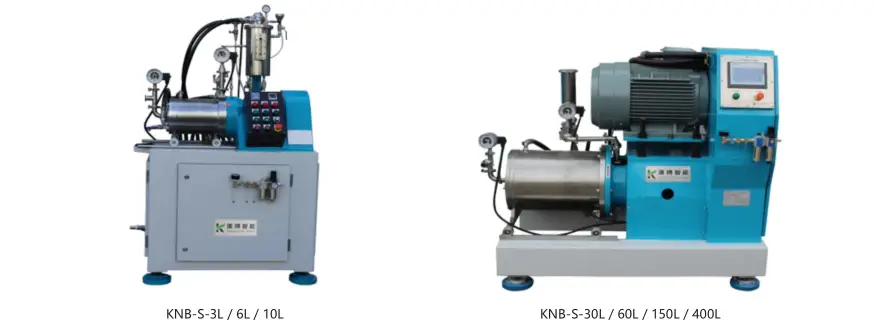

Cov Ntaub Ntawv Ntawv
| qauv | Active Volume | hwj chim (KW) |
Batch Loj (L) |
Media loj (Hli) |
Nyhav (hnyav) |
Qhov ntev (Hli) |
| KNB-S-0.3L | 0.3L | 2.2 | 0.3-5 | 0.1-2.0 | 60 | * * 500 450 650 |
| KNB-S-0.5L | 0.5L | 5.5 | 1.5-10 | 0.1-2.0 | 170 | * * 1020 780 840 |
| KNB-S-0.6L | 0.6L | 5.5 | 1.5-10 | 0.1-2.0 | 175 | * * 1020 780 840 |
| KNB-S-1L | 1L | 5.5 | 3-20 | 0.1-2.0 | 190 | * * 1020 780 840 |
| KNB-S-3L | 3L | 11 | 5-100 | 0.1-2.0 | 400 | * * 1300 900 1750 |
| KNB-S-6L | 6L | 18.5 | 20-200 | 0.1-2.0 | 550 | * * 1300 900 1750 |
| KNB-S-10L | 10L | 22 | 30-300 | 0.1-2.0 | 1300 | * * 1300 900 1750 |
| KNB-S-25L | 25L | 37 | 75-1000 | 0.1-2.0 | 1700 | * * 1900 1500 1700 |
| KNB-S-30L | 30L | 37/45 | 80-1000 | 0.1-2.0 | 1900 | * * 1900 1500 1700 |
| KNB-S-60L | 60L | 75/90 | 200-2000 | 0.1-2.0 | 3600 | * * 2100 1650 1900 |
| KNB-S-100L | 100L | 110 | 300-4000 | 0.1-2.0 | 5600 | * * 2400 1650 2200 |
| KNB-S-150L | 150L | 185 | 500-6000 | 0.1-2.0 | 6800 | 2600*165082300 |
| KNB-S-400L | 400L | 355 | 1000-10000 | 0.1-2.0 | 10500 | * * 4000 1900 2900 |
Kev ntaub ntawv
● Thawj particle loj: ＜100um.
● Tom qab av: 0.1- 10um.
● Solvent: dej-puag, roj-puag.
● Viscosity: ＜40000CPS
● Sib tsoo xov xwm loj: 0.1- 2.0mm
● Cov khoom siv Rotor: Zirconia, Silicon carbide, Tungsten Carbide, PU, Alloyed steel.
● Cov khoom siv hauv nkoj: Zirconia, Silicon carbide, Tungsten Carbide, PU, Alloyed steel.
Cov Khoom Siv Sib Txawv
| qauv | Active Volume | hwj chim (KW) |
Batch Loj (L) |
Media loj (Hli) |
Nyhav (hnyav) |
Qhov ntev (Hli) |
| KNB-S-0.3L | 0.3L | 2.2 | 0.3-5 | 0.1-2.0 | 60 | * * 500 450 650 |
| KNB-S-0.5L | 0.5L | 5.5 | 1.5-10 | 0.1-2.0 | 170 | * * 1020 780 840 |
| KNB-S-0.6L | 0.6L | 5.5 | 1.5-10 | 0.1-2.0 | 175 | * * 1020 780 840 |
| KNB-S-1L | 1L | 5.5 | 3-20 | 0.1-2.0 | 190 | * * 1020 780 840 |
| KNB-S-3L | 3L | 11 | 5-100 | 0.1-2.0 | 400 | * * 1300 900 1750 |
| KNB-S-6L | 6L | 18.5 | 20-200 | 0.1-2.0 | 550 | * * 1300 900 1750 |
| KNB-S-10L | 10L | 22 | 30-300 | 0.1-2.0 | 1300 | * * 1300 900 1750 |
| KNB-S-25L | 25L | 37 | 75-1000 | 0.1-2.0 | 1700 | * * 1900 1500 1700 |
| KNB-S-30L | 30L | 37/45 | 80-1000 | 0.1-2.0 | 1900 | * * 1900 1500 1700 |
| KNB-S-60L | 60L | 75/90 | 200-2000 | 0.1-2.0 | 3600 | * * 2100 1650 1900 |
| KNB-S-100L | 100L | 110 | 300-4000 | 0.1-2.0 | 5600 | * * 2400 1650 2200 |
| KNB-S-150L | 150L | 185 | 500-6000 | 0.1-2.0 | 6800 | 2600*165082300 |
| KNB-S-400L | 400L | 355 | 1000-10000 | 0.1-2.0 | 10500 | * * 4000 1900 2900 |
Kev ntaub ntawv
● Thawj particle loj: ＜100um.
● Tom qab av: 0.1- 10um.
● Solvent: dej-puag, roj-puag.
● Viscosity: ＜40000CPS
● Sib tsoo xov xwm loj: 0.1- 2.0mm
● Cov khoom siv Rotor: Zirconia, Silicon carbide, Tungsten Carbide, PU, Alloyed steel.
● Cov khoom siv hauv nkoj: Zirconia, Silicon carbide, Tungsten Carbide, PU, Alloyed steel.
