Tag nrho cov kev taw qhia Planetary Pob Zeb QXQM 8L
daim ntawv sau npe
Heavy-duty full-directional planetary pob zeb yog dav siv nyob rau hauv geology, minerals, metallurgy, electronics, tsev cov ntaub ntawv, ceramics, tshuaj lom neeg kev lag luam, lub teeb kev lag luam, tshuaj, ib puag ncig tiv thaiv thiab lwm yam departments. Nws yog tsim rau ntau qhov chaw xws li hluav taws xob ceramics, cov qauv ceramics, cov khoom sib nqus, lithium cobalt oxide, lithium manganate, catalyst, phosphor, ntev afterglow phosphor, tsis tshua muaj lub ntiaj teb polishing hmoov, hluav taws xob iav, thiab lwm yam. Qhuav hmoov, Roj Cell. , Zinc Oxide Varistor, Piezoelectric Ceramics, Nanomaterials, Wafer Ceramic Capacitance, MLCC, Thermistor (PTC, NTC), ZnO Varistor, Dielectric Ceramics, Alumina Ceramics, Zirconia Ceramics, Phosphor Powder, Zinc Oxide Powder-Cobalconium Oxide Powder, , Mn-Zn Ferrite, thiab lwm yam.
Video
Txheej txheem cej luam

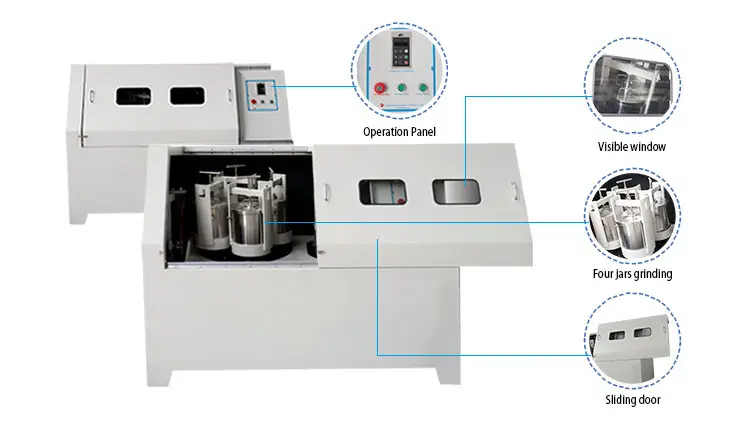

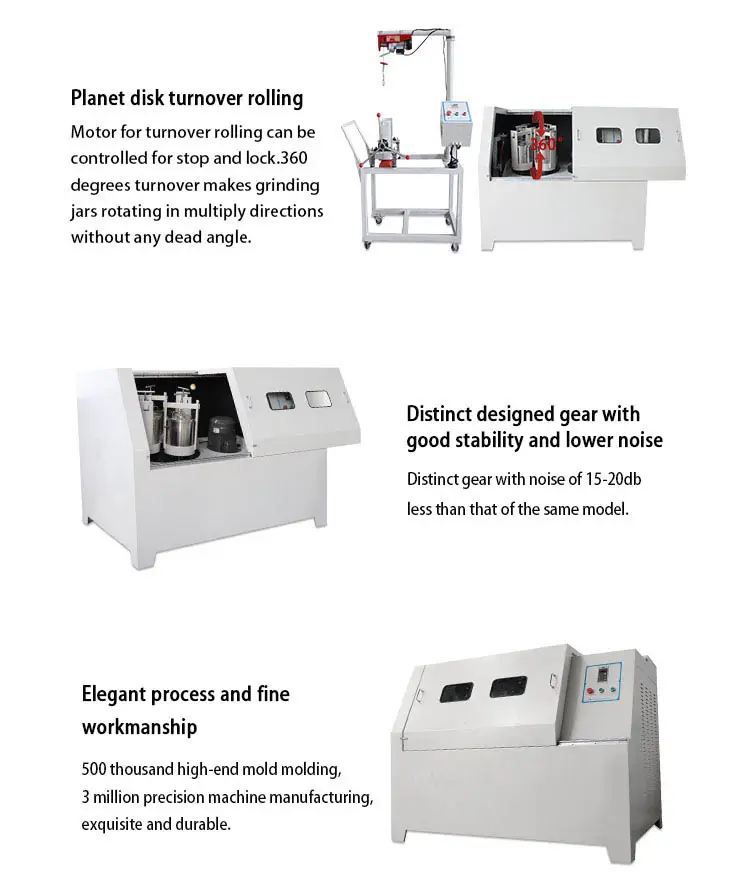

Raws li lub hauv paus ntawm ntsug planetary pob zeb, omnidirectional planetary pob zeb ntxiv cov haujlwm ntawm planetary disc overturning. Thaum lub ntiaj teb disc thiab zeb hub tab tom ua lub ntiaj teb txav, lawv tuaj yeem ua 360 degree tig mus rau hauv qhov chaw tso suab kom paub txog ntau qhov kev taw qhia thiab ntau qhov txav ntawm lub pob zeb hub, thiab txhim kho qib ntawm kev tsis sib haum xeeb ntawm cov pob thiab cov khoom siv. Tag nrho cov khoom yog hauv av nyob rau hauv lub zeb hub tsis muaj lub kaum sab xis tuag, uas ua rau sib tsoo cov ntaub ntawv ntau uniform thiab finer. Hom pob zeb no daws cov teeb meem tshwm sim xws li tso rau hauv lub thawv rau hauv qab thiab ua rau lub hub ntawm phab ntsa.Heavy-duty full-directional planetary pob zeb yog tsim los rau loj batch ntau lawm nrog zawv zawg qhov rooj raws li lub chaw soj nstuam hom tag nrho-directional planetary pob. zeb. Lub tshuab zoo li no tuaj yeem sib phim nrog kev txhawb nqa nqa thiab pub khoom noj uas tau txais los nrog kev tsim qauv. Cov cuab yeej pub mis suav nrog cov thev naus laus zis ntawm kev tshuaj ntsuam vibrating thiab tso tawm rau kev ua haujlwm yooj yim thiab yooj yim. Nws paub qhov yooj yim thiab ceev tuaj tos, tso tawm thiab thauj khoom ntawm lub hub, txo kev siv zog thiab txhim kho kev tsim khoom.
Cov Txheej Txheem Ua Haujlwm
QXQM series planetary pob zeb muaj plaub lub pob zeb sib tsoo tso rau ntawm ib lub disc. Thaum tig disc tig, lub lauj kaub zeb tig rau ntawm lawv tus kheej axis thiab ua 360 degree kev sib hloov. Thiab cov khoom hauv cov tso tsheb hlau luam sib tsoo thiab sib xyaw cov qauv hauv kev txav ceev. Cov khoom tuaj yeem smash thiab sib tov ntau yam khoom ntawm cov khoom sib txawv thiab granularity nrog qhuav los yog ntub txoj kev. Yam tsawg kawg nkaus ntawm cov qauv hauv av tuaj yeem ua me me li 0.1 micron meter. Nws yog dav siv nyob rau hauv thaj chaw ntawm Geology, Mining, Metallurgy, Electronics, Siv Khoom Siv, Ceramics, Chemical Engineering, Light Industry Medicine, Environmental Protection etc.QXQM series planetary pob zeb muaj plaub lub pob zeb sib tsoo tso rau ntawm ib lub disc. Thaum tig disc tig, lub lauj kaub zeb tig rau ntawm lawv tus kheej axis thiab ua 360 degree kev sib hloov. Thiab cov khoom hauv cov tso tsheb hlau luam sib tsoo thiab sib xyaw cov qauv hauv kev txav ceev. Cov khoom tuaj yeem smash thiab sib tov ntau yam khoom ntawm cov khoom sib txawv thiab granularity nrog qhuav los yog ntub txoj kev. Yam tsawg kawg nkaus ntawm cov qauv hauv av tuaj yeem ua me me li 0.1 micron meter. Nws yog dav siv nyob rau hauv thaj chaw ntawm Geology, Mining, Metallurgy, Electronics, Siv Khoom Siv, Ceramics, Chemical Engineering, Light Industry Medicine, Environmental Protection thiab lwm yam.
Feature/Advantage
1. ruaj khov revolving ceev ntawm lub iav kis tau tus mob kom zoo ib yam thiab repeatability ntawm qhov kev sim.
2. Planetary txav txoj cai yog saws nyob rau hauv lub tshuab, uas muaj kev kub ceev, loj zog, high efficiency, me me Granularity.
3. Plaub cov qauv hmoov los ntawm ntau qhov sib txawv thiab cov khoom sib txawv tuaj yeem tsim tau ib zaug.
4. Lub tshuab yog tswj los ntawm zaus converter, koj tuaj yeem xaiv qhov zoo tshaj plaws rotating ceev raws li qhov xav tau kev sim. Lub converter yog nruab nrog cov cuab yeej nyob rau hauv voltage thiab tshaj tam sim no los tiv thaiv lub cev muaj zog.
5. Lub pob zeb planetary muaj lub luag haujlwm ntawm lub sijhawm lub zog tawm, nws tus kheej lub sijhawm rau pem hauv ntej thiab thim rov qab. Koj tuaj yeem xaiv qhov kev ua haujlwm ywj pheej ntawm kev coj ua ib-txoj kev, kev hloov pauv, kev ua tiav, sijhawm teem sijhawm raws li kev sim xav tau, txhawm rau txhim kho kev sib tsoo.
6. Cov yam ntxwv ntawm Tencan Pob Zeb: qhov nruab nrab ntawm lub ntiajteb txawj nqus, kev ua haujlwm ruaj khov, cov qauv sib cog lus, kev ua haujlwm yooj yim, txhim khu kev qha kev nyab xeeb, qis suab nrov, me me poob.
7. Kev nyab xeeb hloov yog ntsia rau ntawm lub tshuab los tiv thaiv kev nyab xeeb yog tias lub hau npog kev nyab xeeb qhib thaum lub tshuab ua haujlwm.
Professional tawm saib tsim thiab muaj qauv ntawm lub pob zeb plhaub nrog lean manufacturing ua tshuab exquisite thiab zoo. CNC ua tshuab yog saws los ua tshuab-ntxiv qhov chaw, thiab precision gears nrog cov ntaub ntawv tshwj xeeb raug xaiv rau cov kis tau tus mob los xyuas kom meej du, nyab xeeb thiab tsis muaj suab nrov ntawm lub pob zeb ntawm kev kub ceev. Overturning lub cev muaj zog muaj kev ua haujlwm ntawm kev sib tsoo nres, uas tuaj yeem nres kev hla ntawm txhua lub kaum sab xis, nws muaj kev nyab xeeb thiab txhim khu kev qha. Pob zeb yog ib qho yooj yim rau kev khiav lag luam vim kov npo ntawm micro-computer raws li nws interface yog yooj yim thiab intuitive. Lub pob zeb zoo li no tuaj yeem paub txog kev hloov pauv mus rau pem hauv ntej thiab rov qab, thiab muaj lub luag haujlwm ntawm lub sijhawm thiab lub zog tawm ntawm lub cim xeeb.
Cov Ntaub Ntawv Ntawv
Table 3 Technical Parameters For Heavy-duty Full-directional Planetary Ball Mill res of Tencan Full-directional Planetary Ball Mill
| Drive hom | Iav tsav |
| Kev Siv Tes Haujlwm Hom | Ob lossis plaub lub hub tuaj yeem siv rau txhua qhov sib tsoo |
| Max peev xwm rau cov ntaub ntawv | Tsawg dua 1/3 ntawm txhua lub thawv ntim Tag nrho max peev: tsawg dua 1/3 ntawm tag nrho cov ntim ntim |
| Pub Qhov Coob | Cov ntaub ntawv mos thiab crispy ≤ 10mm Lwm cov ntaub ntawv nyuaj ≤ 3mm |
| Cov zis Granularity | Cov granularity tsawg tshaj plaws tuaj yeem ua tiav rau 0.1μm |
| Kev sib hloov ceev piv | 1:02 |
| Max Nruam Sijhawm Ua Haujlwm | 72 Teev |
| Cov ntaub ntawv ntawm Muaj Mill Jars | 304 Stainless hlau, 316l stainless hlau, Zirconia, Nylon, PU, Alumina ceramic (corundum), PTFE, Agate, Tungsten carbide |
Table 1 Parameters Rau Tencan Heavy-duty Full-directional Planetary Pob Zeb
| Model No. | Specifications | Matchable Sizes ntawm Mill Jars | Matched Quantity | Matchable Sizes ntawm Vacuum Mill Jars |
| QXM-20 | 20L | 2L-5L | 4 pcs | 1L-4L |
| QXM-40 | 40L | 4L-10L | 4 pcs | 2L-5L |
Table 2 Technical Parameters For Tencan Heavy-duty Full-directional Planetary Ball Mill
| Model No. | voltage | hwj chim | Kev sib hloov ceev | suab nrov |
| QXM-20 | 380V-50Hz | 4.0KW | 50-430 rpm | Tsawg dua 65db |
| QXM-40 | 380V-50Hz | 5.5KW | 40-390 rpm | Tsawg dua 65db |
Table 3 Technical Parameters For Tencan Heavy-duty Full-directional Planetary Ball Mill
| Model No. | Kev tswj kom nrawm | Net Nyhav | Net Qhov ntev |
| QXM-20 | Zaus Tswj | 1150kgs | 1700 * 1210 * 1300mm |
| QXM-40 | Zaus Tswj | 1400kgs | 1900 * 1450 * 1480mm |
Cov Khoom Siv Sib Txawv
Table 3 Technical Parameters For Heavy-duty Full-directional Planetary Ball Mill res of Tencan Full-directional Planetary Ball Mill
| Drive hom | Iav tsav |
| Kev Siv Tes Haujlwm Hom | Ob lossis plaub lub hub tuaj yeem siv rau txhua qhov sib tsoo |
| Max peev xwm rau cov ntaub ntawv | Tsawg dua 1/3 ntawm txhua lub thawv ntim Tag nrho max peev: tsawg dua 1/3 ntawm tag nrho cov ntim ntim |
| Pub Qhov Coob | Cov ntaub ntawv mos thiab crispy ≤ 10mm Lwm cov ntaub ntawv nyuaj ≤ 3mm |
| Cov zis Granularity | Cov granularity tsawg tshaj plaws tuaj yeem ua tiav rau 0.1μm |
| Kev sib hloov ceev piv | 1:02 |
| Max Nruam Sijhawm Ua Haujlwm | 72 Teev |
| Cov ntaub ntawv ntawm Muaj Mill Jars | 304 Stainless hlau, 316l stainless hlau, Zirconia, Nylon, PU, Alumina ceramic (corundum), PTFE, Agate, Tungsten carbide |
Table 1 Parameters Rau Tencan Heavy-duty Full-directional Planetary Pob Zeb
| Model No. | Specifications | Matchable Sizes ntawm Mill Jars | Matched Quantity | Matchable Sizes ntawm Vacuum Mill Jars |
| QXM-20 | 20L | 2L-5L | 4 pcs | 1L-4L |
| QXM-40 | 40L | 4L-10L | 4 pcs | 2L-5L |
Table 2 Technical Parameters For Tencan Heavy-duty Full-directional Planetary Ball Mill
| Model No. | voltage | hwj chim | Kev sib hloov ceev | suab nrov |
| QXM-20 | 380V-50Hz | 4.0KW | 50-430 rpm | Tsawg dua 65db |
| QXM-40 | 380V-50Hz | 5.5KW | 40-390 rpm | Tsawg dua 65db |
Table 3 Technical Parameters For Tencan Heavy-duty Full-directional Planetary Ball Mill
| Model No. | Kev tswj kom nrawm | Net Nyhav | Net Qhov ntev |
| QXM-20 | Zaus Tswj | 1150kgs | 1700 * 1210 * 1300mm |
| QXM-40 | Zaus Tswj | 1400kgs | 1900 * 1450 * 1480mm |
