Vertical Planetary Ball Mill (Tsev Hom)
daim ntawv sau npe
Vertical planetary pob zeb yog ib qho cuab yeej tsim nyog ntawm high-tech cov ntaub ntawv sib xyaw, zoo sib tsoo, qauv ua, kev tsim khoom tshiab thiab me me batch ntau lawm. Tencan planetary pob zeb muaj me me ntim, ua haujlwm siab, tsis tshua muaj suab nrov thiab ua haujlwm zoo uas yog a Cov khoom siv zoo tagnrho rau R & D lub tsev kawm ntawv, tsev kawm qib siab, kev lag luam Laboratory kom tau txais cov qauv (txhua qhov kev sim tuaj yeem tau txais plaub qhov qauv ntawm qhov tib lub sijhawm).
Video
Txheej txheem cej luam
Vertical planetary pob zeb yog cov cuab yeej tsim nyog ntawm cov khoom siv thev naus laus zis sib xyaw, kev sib tsoo zoo, qauv tsim, kev tsim khoom tshiab thiab kev tsim khoom me me. Tencan planetary pob zeb muaj cov ntim me me, kev ua haujlwm siab, tsis tshua muaj suab nrov thiab ua haujlwm zoo uas yog cov khoom siv zoo tshaj plaws rau R & D lub tsev kawm ntawv, tsev kawm ntawv, chaw ua haujlwm kom tau txais cov qauv (txhua qhov kev sim tuaj yeem tau txais plaub tus qauv tib lub sijhawm). hom pob zeb no tuaj yeem siv rau kev sib tsoo cov ntaub ntawv tshwj xeeb hauv lub tshuab nqus tsev yog tias nws ntim nrog lub tshuab nqus tsev hub.
Vertical planetary pob zeb ntau lawm qauv yog ib tug loj-loj planetary pob zeb uas yog tsim, tsim, thiab tsim nyob rau hauv lub hauv paus ntawm kev ua hauj lwm hauv paus ntsiab lus ntawm me me planetary pob zeb. Lub pob zeb ntau lawm yog tsim rau kev sib tsoo loj.
Cov Txheej Txheem Ua Haujlwm

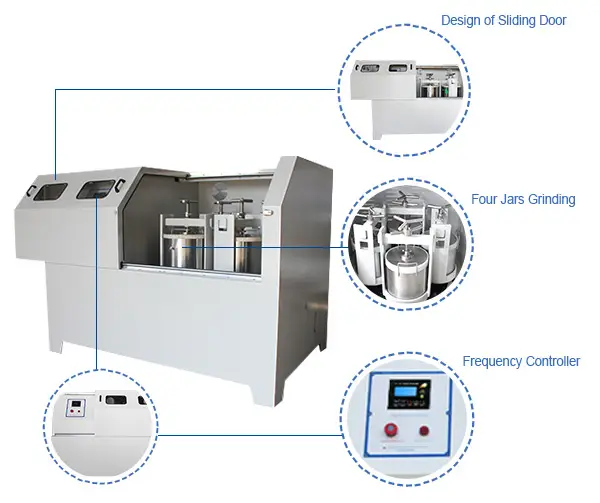

Planetary Ball Mill muaj plaub lub pob sib tsoo tso rau ntawm ib lub turntable. Thaum lub turntable tig, lub tank axis ua rau lub ntiaj teb txav, cov khoom thiab cov qauv hauv cov tso tsheb hlau luam raug cuam tshuam rau hauv kev kub ceev txav, thiab cov qauv yog thaum kawg hauv av. Ntau yam ntawm cov ntaub ntawv sib txawv tuaj yeem ua hauv av los ntawm lub zeb nrog txoj kev qhuav lossis ntub dej. Yam tsawg kawg nkaus granularity ntawm cov hmoov av tuaj yeem ua me me li 0.1μm.
Feature/Advantage
Lub pob zeb lub plhaub yog welded nrog tuab steel phaj, uas muaj lub zog siab, cuam tshuam tsis kam, deformation kuj, kev ua haujlwm zoo, muaj zog thiab zoo nkauj tsos. Cov khoom siv ntawm cov khoom siv tshuab yog nruj me ntsis ua tiav los ntawm cov txheej txheem kev kho cua sov thiab cov lej tswj kev ua haujlwm. Lub thawv iav yog saws nrog quasi-sealed groove embedded qauv, thiab cov iav tsav yog ua los ntawm hnav-resistant precision iav. Lub tshuab thav duab thiab cov qauv raug txiav txim siab tag nrho hauv kev tsim los ua kom ruaj khov, nyab xeeb thiab txhim khu kev lag luam ntawm lub pob zeb nyob rau hauv lub sij hawm ntev thiab siab load, thiab kom ua tiav cov nyhuv ntawm lub suab nrov txo nyob rau hauv lub lag luam ntawm lub tshuab. Lub tshuab ua kua roj nws tus kheej yog tsim los nrog lub suab qis thiab siab siv, thiab nws tau nruab nrog lub ntsuas roj qib ntsuas kom yooj yim hloov. Cov cuab yeej txhawb nqa nqa thiab pub mis yog saws nrog kev tsim qauv. Cov cuab yeej pub mis suav nrog cov thev naus laus zis ntawm kev tshuaj ntsuam vibrating thiab tso tawm rau kev ua haujlwm yooj yim thiab yooj yim. Nws paub qhov yooj yim thiab ceev tuaj tos, tso tawm thiab thauj khoom ntawm lub hub, txo kev siv zog thiab txhim kho kev tsim khoom. Nrog lub vijtsam kov ntawm micro-computer, lub tshuab ua haujlwm tau yooj yim, lub interface yog yooj yim dua thiab intuitive, rau pem hauv ntej thiab thim rov qab alternating tswj tau yooj yim. Nws muaj cov haujlwm ntawm lub sijhawm thiab lub zog-tawm lub cim xeeb.
Qhov zoo ntawm Tencan Vertical Planetary Pob Zeb Ntau Lawm Qauv
1. ruaj khov revolving ceev ntawm lub iav tsav kom zoo ib yam thiab repeatability ntawm kev sim.
2. Planetary txav lub hauv paus ntsiab lus yog saws nyob rau hauv lub tshuab nrog qhov zoo ntawm kev kub ceev, loj zog, high efficiency, nplua granularity.
3. Plaub hmoov kuaj los ntawm ntau qhov sib txawv thiab cov khoom sib txawv tuaj yeem tau txais rau txhua pawg.
4. Pob zeb yog tswj los ntawm zaus converter, koj tuaj yeem xaiv qhov zoo tshaj plaws rotating ceev raws li qhov xav tau kev sim. Lub zaus converter yog nruab nrog cov cuab yeej nyob rau hauv voltage thiab tshaj tam sim no los tiv thaiv lub cev muaj zog.
5. Planetary pob zeb muaj lub luag haujlwm ntawm lub sijhawm lub zog tawm, nws tus kheej lub sijhawm rau pem hauv ntej thiab thim rov qab. Koj tuaj yeem xaiv qhov kev ua haujlwm ywj pheej ntawm kev coj ua ib-txoj kev, kev hloov pauv, kev ua tiav, sijhawm teem sijhawm raws li kev sim xav tau, txhawm rau txhim kho kev sib tsoo.
6. Cov yam ntxwv ntawm Tencan planetary pob zeb: qhov nruab nrab ntawm lub ntiajteb txawj nqus qis, kev ua haujlwm ruaj khov, cov qauv kev cog lus, kev ua haujlwm yooj yim, txhim khu kev qha kev nyab xeeb, qis suab nrov, poob me me.
7. Kev nyab xeeb hloov yog ntsia rau ntawm lub tshuab kom nres kom tsis txhob muaj kev nyab xeeb yog tias lub hau npog kev nyab xeeb qhib thaum lub tshuab ua haujlwm.
Cov Ntaub Ntawv Ntawv
Technical Data Sheet ntawm Tencan Vertical Planetary Pob Zeb Ntau Lawm Qauv
| Drive hom | Iav tsav |
| Kev Siv Tes Haujlwm Hom | Ob lossis plaub lub hub tuaj yeem siv rau txhua qhov sib tsoo |
| Max Load Capacity rau cov ntaub ntawv | Tsawg dua 1/3 ntawm txhua lub thawv ntim, tag nrho cov peev txheej: tsawg dua 1/3 ntawm tag nrho cov thawv ntim |
| Pub Qhov Loj ntawm Cov Khoom Siv | Cov khoom mos thiab crispy≤10mm, Lwm yam ntaub ntawv nyuaj≤3mm |
| Cov zis Granularity | Qhov tsawg tshaj plaws granularity tuaj yeem ncav cuag 0.1µm |
| Rotational Speed Ratio | 1/2 |
| Max.Nruam sijhawm ua haujlwm | 72 Teev |
| Cov ntaub ntawv ntawm Muaj Mill Jars | 304 Stainless hlau, 316l stainless hlau, Zirconia, Nylon, PU, Alumina ceramic (corundum), PTFE, Agate, Tungsten carbide, thiab lwm yam |
| Technical Parameter Table (I) ntawm Vertical Square Planetary Pob Zeb (Yuav Ua Li Cas) | ||||
| Hom NO | specification | Volume ntawm Txhua Matched Pot | kom muaj nuj nqis | lus hais |
| XQM-20 | 20L | 2-5L | 4pcs | Matched nrog lub tshuab nqus tsev zeb lauj kaub los ntawm 2L txog 4L |
| XQM-40 | 40L | 5-10L | 4pcs | tuaj yeem sib phim nrog 5L Nqus zeb lauj kaub |
| XQM-60 | 60L | 10-15L | 4pcs | tuaj yeem sib phim nrog 10L Nqus zeb lauj kaub |
| XQM-100 | 100L | 20-25L | 4pcs | tuaj yeem sib phim nrog 20L Nqus zeb lauj kaub |
| Technical Parameter Table (II) ntawm Vertical Square Planetary Pob Zeb (Yuav Ua Li Cas) | |||||||
| qauv | hwj chim (KW) | voltage | kiv puag ncig ceev (rpm) | kev sib hloov ceev (rpm) | Tag nrho cov Sij hawm (feeb) | Alternating Khiav Sijhawm ntawm Forward & Rov qab tig (feeb) | Suab nrov≤db |
| XQM-20 | 4 | 380V-50Hz | 25-215 | 50-430 | 1-9999 | 1-999 | 65db |
| XQM-40 | 5.5 | 380V-50Hz | 20-195 | 40-390 | 1-9999 | 1-999 | 68db |
| XQM-60 | 7.5 | 380V-50Hz | 27-174 | 40-260 | 1-9999 | 1-999 | 68db |
| XQM-100 | 11 | 380V-50Hz | 27-160 | 40-240 | 1-9999 | 1-999 | 68db |
| Technical Parameter Table (III) ntawm Vertical Square Planetary Pob Zeb (Hloov hom) | ||||
| qauv | hwj chim (KW) | Kev tswj ceev hom | Ntsuas phaus (kg) | Dimension (hli) |
| XQM-20 | 4 | Zaus Tswj | 440 | * * 1200 760 920 |
| XQM-40 | 5.5 | Zaus Tswj | 675 | * * 1400 850 1030 |
| XQM-60 | 7.5 | Zaus Tswj | 875 | * * 1600 950 1120 |
| XQM-100 | 11 | Zaus Tswj | 1100 | * * 1750 1100 1180 |
