Lub Teeb Stir Pob Zeb
Daim ntawv thov
Nws yog dav siv nyob rau hauv kev lag luam ntawm zirconia silicate, zirconia, alumina oxide, ceramic, tshuaj, khoom siv hluav taws xob, khoom siv hlau nplaum, ntawv ua, pleev xim, tsis yog hlau, cov ntaub ntawv tshiab, txheej, graphite, calcium carbonate, tshuaj, thiab lwm yam. .
Video
Txheej txheem cej luam
Stirred pob zeb tsuas yog muaj cov thawv nrog sab hauv kev sib tsoo xov xwm, nplawm cov khoom siv thiab lwm yam khoom siv xws li cov khoom siv rov ua dua tshiab, cov khoom siv txias txias, lub sijhawm siv, kev hloov kho ceev, thiab lwm yam. . Stirred pob zeb yog ib yam khoom siv zoo tshaj plaws uas siv los tsoo cov ntaub ntawv tshiab thiab kev tshawb fawb pleev xim rau cov tsev kawm ntawv qib siab, cov chaw tshawb fawb thiab cov lag luam vim nws cov yam ntxwv ntawm cov khoom me me, tsis muaj zog thiab tus nqi qis.
Cov Txheej Txheem Ua Haujlwm
Thaum lub tshuab rotates nrog kev kub ceev nyob rau hauv kev tsav tsheb ntawm lub ntsiab axis thiab grind media txav irregularly nyob rau tib lub sij hawm, cov khoom grind yuav crushed, av thiab sheared rau hauv nplua granularity hmoov. Qhov loj, cov duab thiab qhov sib piv ntawm cov xov xwm sib tsoo tuaj yeem cuam tshuam rau kev sib tsoo. Feem ntau hais lus, qhov loj dua lub tshuab xov xwm yog, qhov zoo dua cov hmoov sib tsoo. Kev sib tw kom zoo ntawm kev sib tsoo medias thiab kev hloov kho kom zoo ntawm kev sib hloov ceev tuaj yeem tau txais kev sib tsoo zoo dua.

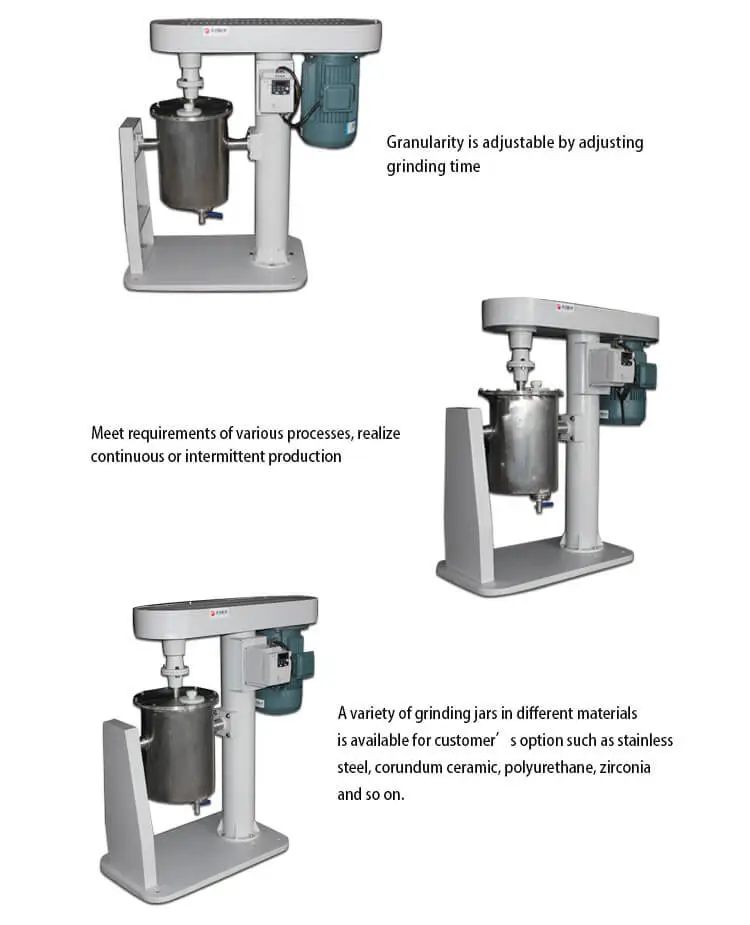

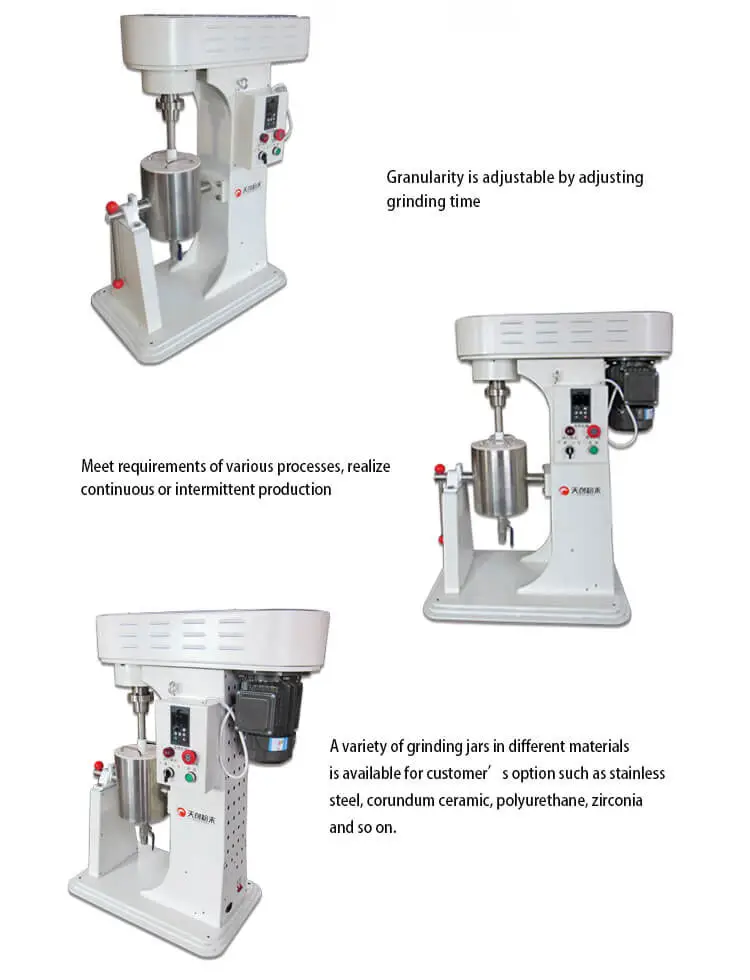

Feature/Advantage
1. Kev siv hluav taws xob siab, txuag hluav taws xob
2. Granularity yog adjustable los ntawm kev kho lub sij hawm sib tsoo
3. Tsawg vibration, suab nrov tsawg
4. Cov qauv yooj yim, ua haujlwm yooj yim
5. Ua tau raws li qhov yuav tsum tau ua ntawm ntau yam txheej txheem, paub txog kev tsim khoom tsis tu ncua lossis tsis sib xws
6. Lub thawv nrog lub tsho, yooj yim los tswj kev sib tsoo kub
7. Kev pabcuam customized muaj. Cov haujlwm tshwj xeeb xws li lub sijhawm, hloov kho ceev, rov ua dua tshiab, tswj qhov kub thiab txias tuaj yeem xaiv thiab xaj.
8. Ntau yam kev sib tsoo hub hauv cov khoom sib txawv yog muaj rau cov neeg siv khoom xaiv xws li stainless hlau, corundum ceramic, polyurethane, zirconia thiab lwm yam.

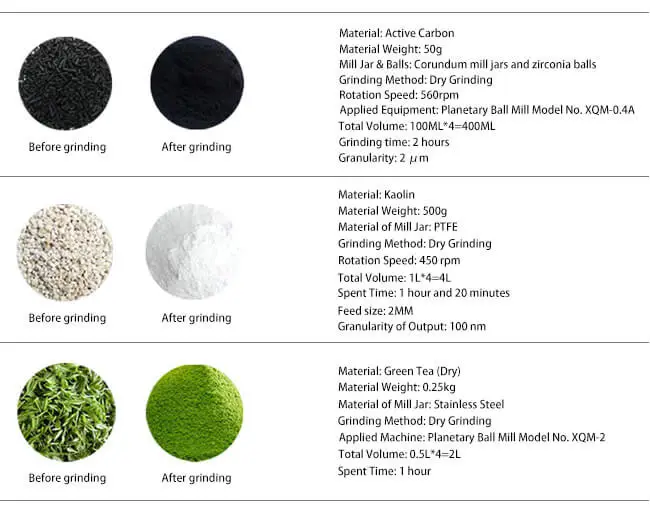

Daim ntawv thov Case ntawm Planetary Pob Zeb
Daim ntawv thov Case ntawm Planetary Pob Zeb
Cov Ntaub Ntawv Ntawv
| Main Parameters ntawm Stirred Ball Mill | |||||||||
| Qauv TSIS MUAJ. | Tig rov qab ceev (rpm) | volume (L) | load peev Xwm (L) | hwj chim Mov (KW/V) | Qhov Taub Hau | Pub Qhov Coob (Hli) | tso zis Granularity (μm) | Kev tswj ceev hom | Catagory |
| JM-1L | 50-1400 | 1 | 0.35 | Lub hwj chim: 0.37KW / 220V | stainless hlau nylon Alumina Ceramic PU Zirconia Agate PTFE | ≤5 | ≤1 hli | Zaus ceev cais | Kuaj scale |
| JM-2L | 50-1400 | 2 | 0.7 | Lub hwj chim: 0.37KW / 220V | ≤5 | ≤1 hli | |||
| JM-3L | 50-1400 | 3 | 1.05 | Lub hwj chim: 0.37KW / 220V | ≤5 | ≤1 hli | |||
| JM-5L | 60-600 | 5 | 1.75 | Lub hwj chim: 0.75KW / 220V | ≤5 | ≤1 hli | Zaus ceev adjuster or Tsau ceev chaw Rau cov neeg yuav khoom xaiv | Hom me me | |
| JM-10L | 60-560 | 10 | 3.5 | Lub hwj chim: 1.5KW / 220V | ≤10 | ≤1 hli | |||
| JM-15L | 60-380 | 15 | 5.25 | Lub hwj chim: 2.2KW / 380V | ≤10 | ≤1 hli | |||
| JM-20L | 60-380 | 20 | 7 | Lub hwj chim: 2.2KW / 380V | ≤10 | ≤1 hli | Lub Teeb Ntaus | ||
| JM-30L | 60-310 | 30 | 10.5 | Lub hwj chim: 3KW / 380V | Cov Roj Hlau stainless hlau Nylon liner PU liner Alumina Ceramic Liner PTFE liner | ≤10 | ≤1 hli | ||
| JM-50L | 60-140 | 50 | 17.5 | Lub hwj chim: 4KW / 380V | ≤10 | ≤1 hli | |||
| JM-100L | 60-140 | 100 | 35 | Lub hwj chim: 7.5KW / 380V | ≤20 | ≤1 hli | Muaj hom | ||
| JM-200L | 60-140 | 200 | 70 | Lub hwj chim: 11KW / 380V | ≤20 | ≤1 hli | |||
| JM-300L | 60-110 | 300 | 100 | Lub hwj chim: 15KW / 380V | ≤20 | ≤1 hli | |||
| JM-500L | 60-90 | 500 | 170 | Lub hwj chim: 18.5KW / 380V | ≤20 | ≤1 hli | |||
| JM-600L | 60-90 | 600 | 210 | Lub hwj chim: 22KW / 380V | ≤20 | ≤1 hli | |||
Cov Khoom Siv Sib Txawv
| Main Parameters ntawm Stirred Ball Mill | |||||||||
| Qauv TSIS MUAJ. | Tig rov qab ceev (rpm) | volume (L) | load peev Xwm (L) | hwj chim Mov (KW/V) | Qhov Taub Hau | Pub Qhov Coob (Hli) | tso zis Granularity (μm) | Kev tswj ceev hom | Catagory |
| JM-1L | 50-1400 | 1 | 0.35 | Lub hwj chim: 0.37KW / 220V | stainless hlau nylon Alumina Ceramic PU Zirconia Agate PTFE | ≤5 | ≤1 hli | Zaus ceev cais | Kuaj scale |
| JM-2L | 50-1400 | 2 | 0.7 | Lub hwj chim: 0.37KW / 220V | ≤5 | ≤1 hli | |||
| JM-3L | 50-1400 | 3 | 1.05 | Lub hwj chim: 0.37KW / 220V | ≤5 | ≤1 hli | |||
| JM-5L | 60-600 | 5 | 1.75 | Lub hwj chim: 0.75KW / 220V | ≤5 | ≤1 hli | Zaus ceev adjuster or Tsau ceev chaw Rau cov neeg yuav khoom xaiv | Hom me me | |
| JM-10L | 60-560 | 10 | 3.5 | Lub hwj chim: 1.5KW / 220V | ≤10 | ≤1 hli | |||
| JM-15L | 60-380 | 15 | 5.25 | Lub hwj chim: 2.2KW / 380V | ≤10 | ≤1 hli | |||
| JM-20L | 60-380 | 20 | 7 | Lub hwj chim: 2.2KW / 380V | ≤10 | ≤1 hli | Lub Teeb Ntaus | ||
| JM-30L | 60-310 | 30 | 10.5 | Lub hwj chim: 3KW / 380V | Cov Roj Hlau stainless hlau Nylon liner PU liner Alumina Ceramic Liner PTFE liner | ≤10 | ≤1 hli | ||
| JM-50L | 60-140 | 50 | 17.5 | Lub hwj chim: 4KW / 380V | ≤10 | ≤1 hli | |||
| JM-100L | 60-140 | 100 | 35 | Lub hwj chim: 7.5KW / 380V | ≤20 | ≤1 hli | Muaj hom | ||
| JM-200L | 60-140 | 200 | 70 | Lub hwj chim: 11KW / 380V | ≤20 | ≤1 hli | |||
| JM-300L | 60-110 | 300 | 100 | Lub hwj chim: 15KW / 380V | ≤20 | ≤1 hli | |||
| JM-500L | 60-90 | 500 | 170 | Lub hwj chim: 18.5KW / 380V | ≤20 | ≤1 hli | |||
| JM-600L | 60-90 | 600 | 210 | Lub hwj chim: 22KW / 380V | ≤20 | ≤1 hli | |||
